As promised in my other thread I am delivering a guide
on an exhaust cutout mod. As some may be aware, I just recently got my RT back from a nasty failure of the rear suspension, which wiped out everything in the rear underbody, including my performance exhaust. Chrysler mostly covered the repair costs, but they wouldn't cover the performance exhaust. So here I am back with this stock exhaust that sounds like a box fan when you rev it up. That has to go.
So after exploring options I set my crosshairs on exhaust cutouts, specifically the low profile oval cutouts from QTP. I just got everything finished today and oh.. my... god. When full open, the car sounds like the loudest, most angry lion roar you could possibly imagine. Beauty of it is that with the stock
exhaust you can go full out stealth mode, you can crack them open just a hair and you get a nice 'reasonable' exhaust volume that sounds good, and you can open them all the way up and cause chaos, all with a switch in the knee panel.
So first things first. The raw materials you will need:
-The cutout assemblies (Example: http://www.summitracing.com/parts/QTP-QTEC66 )
-The turndowns (Example: http://www.summitracing.com/parts/QTP-11338 )
-Switch (optional recommended improvement) (Example: Amazon.com: Waterproof Illuminated Double Pole, Double Throw 3 Position Momentary On-Off-Momentary On Rocker Switch: Automotive )
-Tooling
--Wire strippers and cutters
--Splices and shrink wrap
--Drill with small and large bits
--Aluminum 'Speed'
tape
--Ty wraps
--Screw drivers
--Welder (or a welding shop)

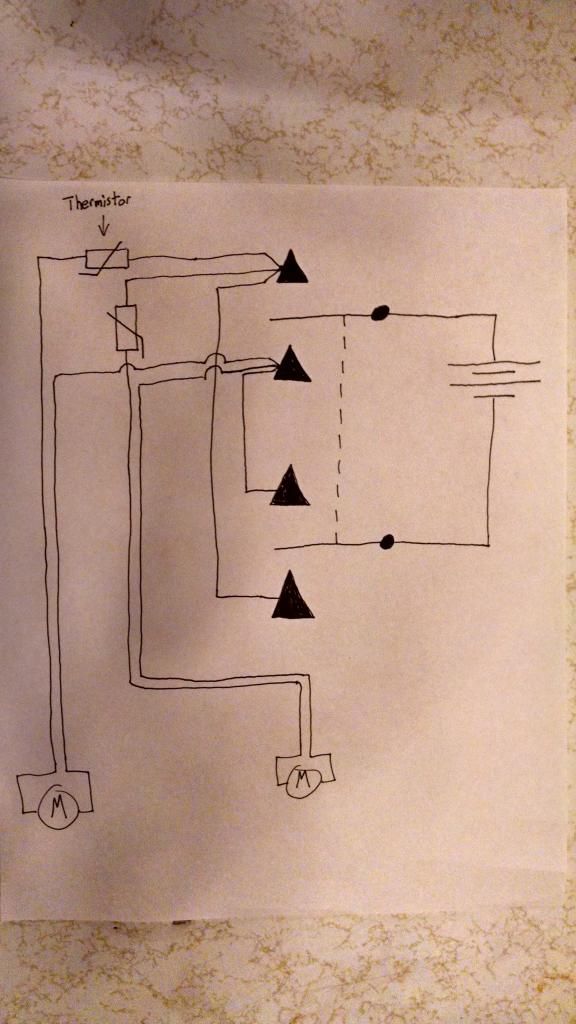

First thing I did was some prep work on the switch assembly. I drew up the schematic on what the stock switch assembly looks like:
This is what the original switch looks like:
The problem with this switch that I didn't like was 1.) The looks. I wanted a rocker switch. 2.) It was quite stiff, so much that I thought the plastic molding might end up cracking over time with activation of the switch.

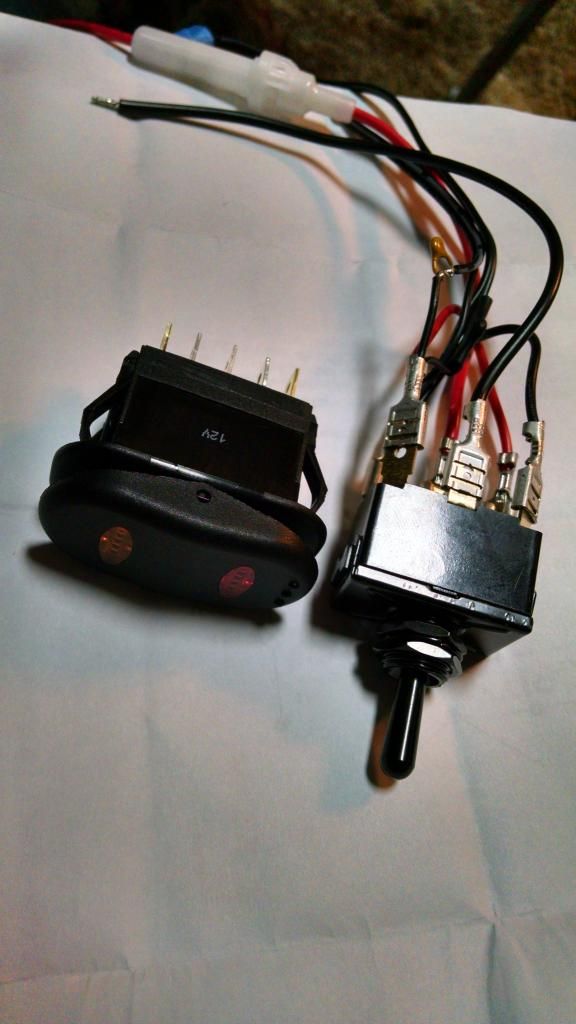

Here's a side by side of the original switch, and the one that I chose to replace it with:

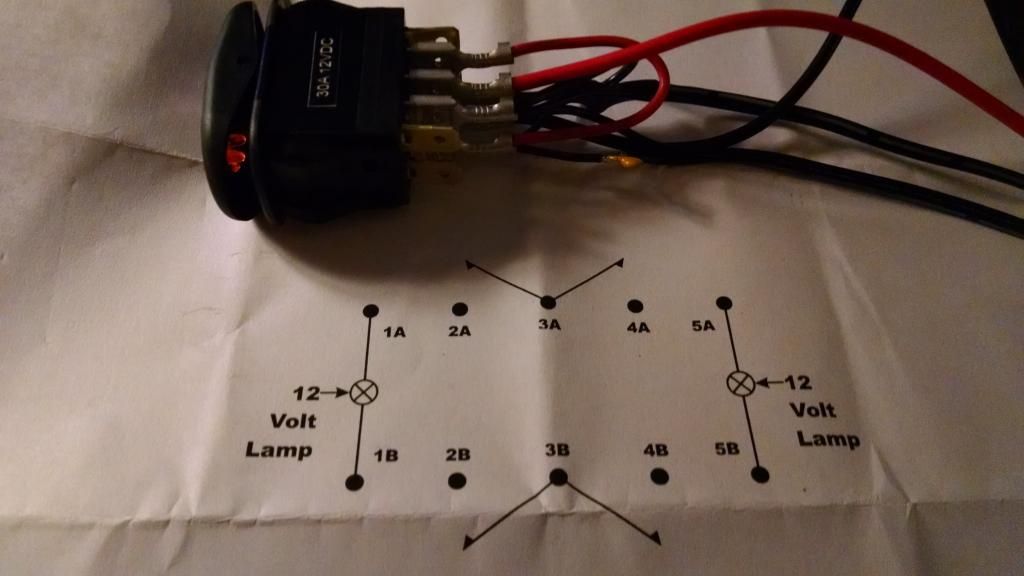

If you choose to replace the switch, the next steps are the how to. The wire terminals will transfer from one switch to the other without any terminal end replacements. Just move them from one switch to the other keeping the same order. The new switch will use 2, 3, and 4. 1 and 5 are the lamps. Here is the schematic on the new switch:
For this switch I wanted the red lamp to be the momentary switch to open the cutouts and I wanted the amber to close them. If you have the same switch from QTP you'll see one side of the switch are single wire jumpers to the other side of the switch. Put those jumpers on the side of the switch that you want to open the valve. So if referencing the 2nd schematic, the red lamp is 5A & 5B, you'll want the single wire jumper on 4A & 4B. Hopefully I didn't make that too confusing. If all else fails and wires get mixed up or don't come like my switch did, wire it like my schematic and it will work.
You'll want to wire up your lamps next. I wanted my lamps to be lit anytime the valves could be moved. To do this I spliced in two runs of wire on the power wire (red) and two on the ground (black).

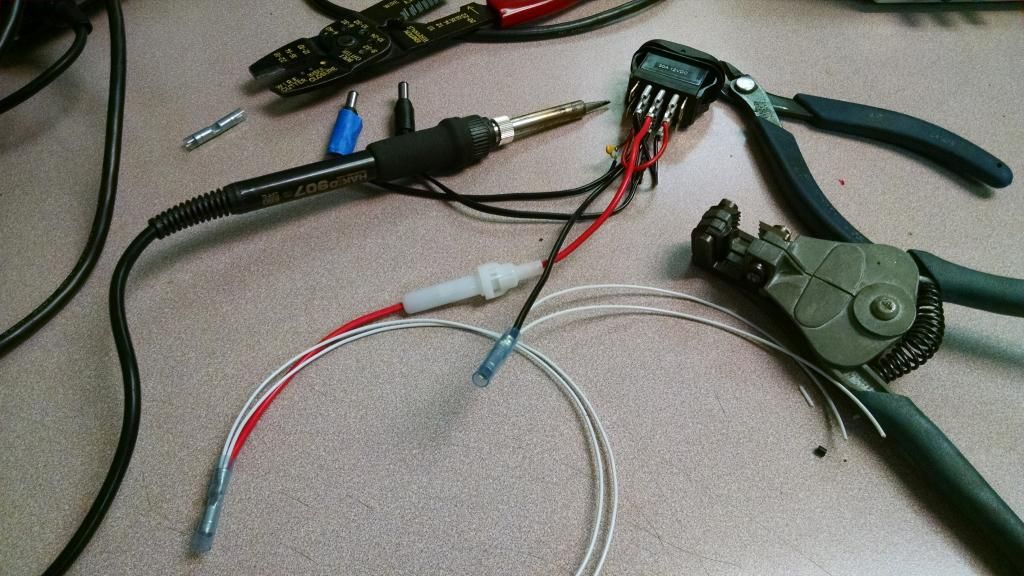

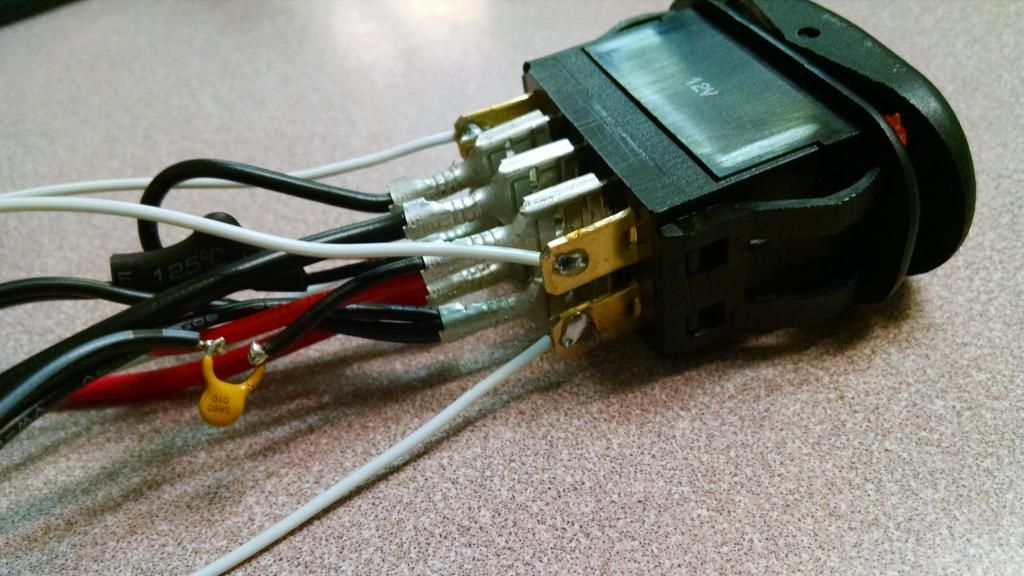

Run the power to 1A and 5A and the ground wires to 1B and 5B. You could find a wire terminal to fit the switch or just solder them on. I like to solder, so that's what I did:

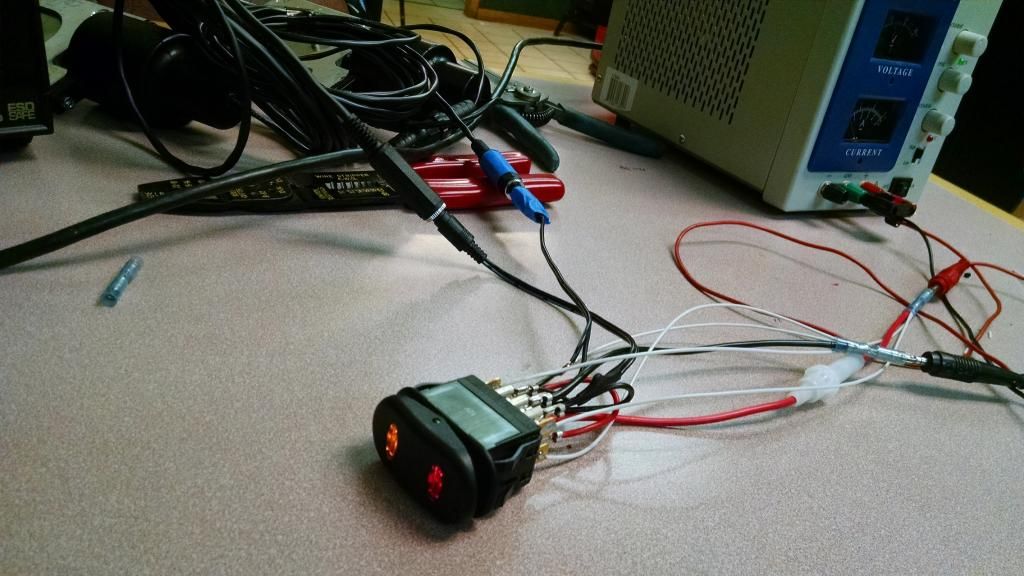

If you happen to have a power supply, it's good to be able to ops check everything at this point:

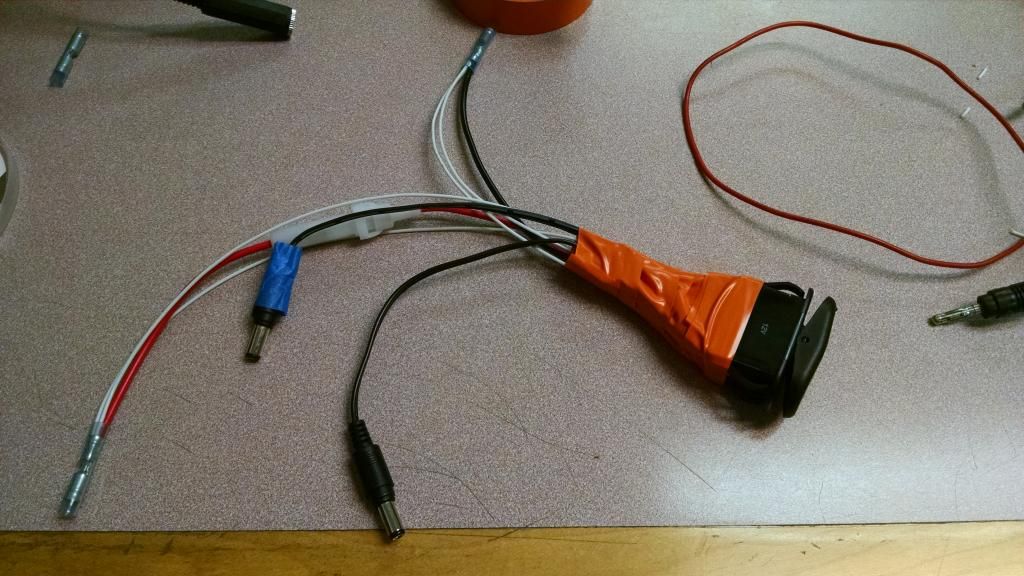

When you are done wiring it up, wrap it up in some electrical tape to keep everything secure and covered:
Next up is the work on the car.
As promised in my other thread I am delivering a guide

So after exploring options I set my crosshairs on exhaust cutouts, specifically the low profile oval cutouts from QTP. I just got everything finished today and oh.. my... god. When full open, the car sounds like the loudest, most angry lion roar you could possibly imagine. Beauty of it is that with the stock

So first things first. The raw materials you will need:
-The cutout assemblies (Example: http://www.summitracing.com/parts/QTP-QTEC66 )
-The turndowns (Example: http://www.summitracing.com/parts/QTP-11338 )
-Switch (optional recommended improvement) (Example: Amazon.com: Waterproof Illuminated Double Pole, Double Throw 3 Position Momentary On-Off-Momentary On Rocker Switch: Automotive )
-Tooling
--Wire strippers and cutters
--Splices and shrink wrap
--Drill with small and large bits
--Aluminum 'Speed'

--Ty wraps
--Screw drivers
--Welder (or a welding shop)
First thing I did was some prep work on the switch assembly. I drew up the schematic on what the stock switch assembly looks like:

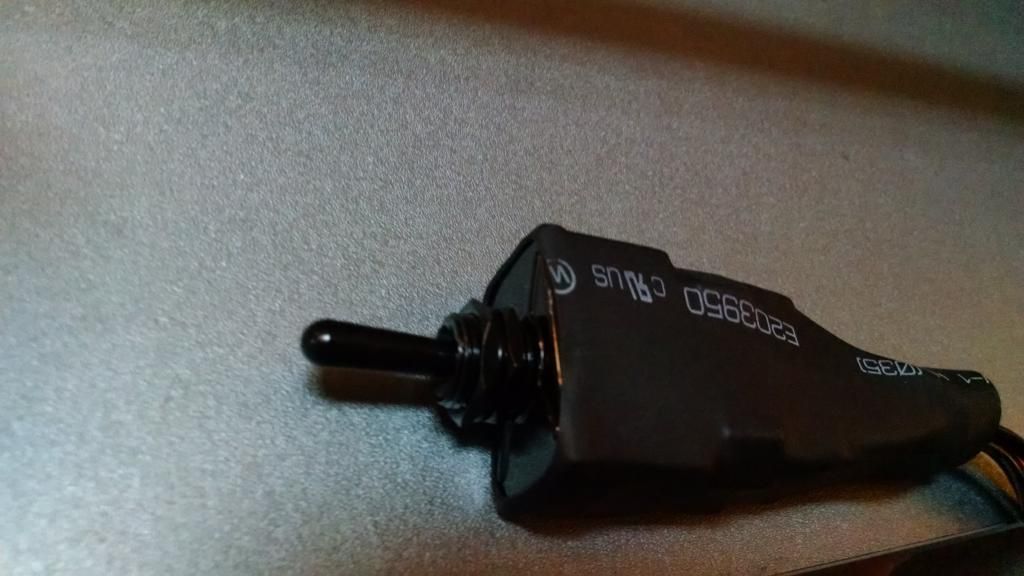

This is what the original switch looks like:
